2000 SERIES – WINDOWS

2000 SERIES – WINDOWS

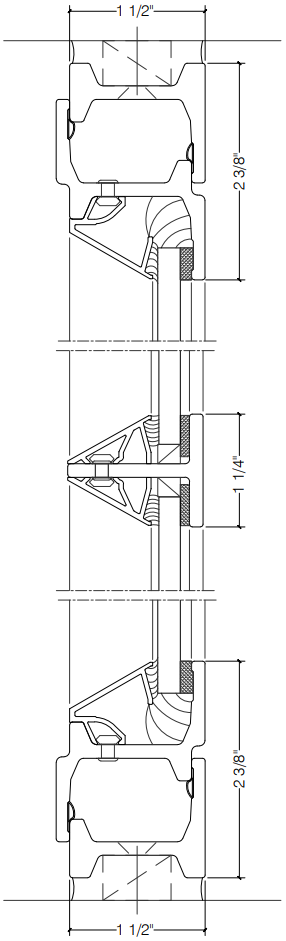

1-1/2” Depth Heavy Intermediate windows include fixed, project out/in and casement.

Sloped snap-on glazing bead and Square snap-on glazing bead is available from ¼” up to 1” insulated glass.

Horizontal and vertical muntin bars are 1-1/4” x 1-1/2” for single and insulated glass.

Horizontal and vertical muntin bars are 7/8” x 1-1/2” for max ¼” glass.

Horizontal and vertical muntin bars are 2” x 1-1/2” for 1” glass.

Recommended Maximum Vent Sizes:
Casement – 3’-0” wide by 6’-5” high tip to tip.
Projected – 5’-6” wide by 3’-6” high tip to tip.

Full Downloads ZIP

CAD DWG Download

  • 1A. Fixed Sash – Block Frame – Single Glazed(Download)
  • 1B. Fixed Sash – Z Bar Frame – Single Glazed(Download)
  • 2A. Fixed Sash – Block Frame – Dual Glazed(Download)
  • 2B. Fixed Sash – Z Bar Frame – Dual Glazed(Download)
  • 3A. Fixed Sash – Block Frame – One Inch Dual Glazed(Download)
  • 3B. Fixed Sash – Z Bar Frame – One Inch Dual Glazed(Download)
  • 1B. Single Casement – Z Bar Frame – Single Glazed(Download)
  • 1B. Fixed Sash – Z Bar Frame – Single Glazed(Download)
  • 2B. Single Camement – Z Bar Frame – Dual Glazed(Download)
  • 3A. Single Casment – Block Frame – One Inch Dual Glazed(Download)
  • 3B. Single Casement – Z Bar Frame – One Inch – Dual Glazed(Download)
  • 4A. Single Casement – In Swing – Block Frame – Dual Glazed(Download)
  • 4B. Single Casement – In Swing – Z Bar Frame – Dual Glazed(Download)
  • 1A. Double Casement – Block Frame – Single Glazed(Download)
  • 1B. Double Casement – Z Bar Frame – Single Glazed(Download)
  • 2A. Double Casement – Block Frame – Dual Glazed(Download)
  • 2B. Double Casement – Z Bar Frame – Dual Glazed(Download)
  • A. Double Casement – Block Frame – One Inch Dual Glazed(Download)
  • 3B. Double Casement – Z Bar Frame – One Inch Dual Glazed(Download)
  • 4A. Double Casement – In Swing – Block Frame – Dual Glazed(Download)
  • 4B. Double Casement – In Swing – Z Bar Frame – Dual Glazed(Download)
  • 1A. Awning – Block Frame – Single Glazed(Download)
  • 1B. Awning – Z Bar Frame – Single Glazed(Download)
  • 2A. Awning -Block Frame – Dual Glazed(Download)
  • 2B. Double Casement – Z Bar Frame – Dual Glazed(Download)
  • 2B. Awning – Z Bar Frame – Dual Glazed(Download)
  • 3A. Awning – Block Frame – One Inch Dual Glazed(Download)
  • 3B. Awning – Z Bar Frame – One Inch Dual Glazed(Download)
  • 4A. Hopper – Block Frame – Single Glazed(Download)
  • 4B. Hopper – Z Bar Frame – Single Glazed(Download)
  • 5A. Hopper – Block Frame – Dual Glazed(Download)
  • 5B. Hopper – Z Bar Frame – Dual Glazed(Download)
  • 6A. Hopper – Block Frame – One Inch Glaze(Download)
  • 6B. Hopper – Z Bar Frame – One Inch Glaze(Download)
  • 1A. Single Pivot – Block Frame – Single Glaze(Download)
  • 1B. Single Pivot – Z Bar Frame – Single Glaze(Download)
  • 2B. Single Pivot – Block Frame – Dual Glaze(Download)
  • 2C. Single Pivot – Z Bar Frame – Dual Glaze(Download)
  • 3A. Single Pivot – Block Frame – One Inch Glaze(Download)
  • 3B. Single Pivot – Z Bar Frame – One Inch Glaze(Download)
  • 1A. Combination Casement – Block Frame – Dual Glaze(Download)
  • 1B. Combination Casement – Z Bar Frame – Dual Glaze(Download)
  • 2A. Combination Hopper & Awning – Block Frame – Dual Glaze(Download)
  • 2B. Combination Hopper & Awning – Z Bar Frame – Dual Glaze(Download)
